Write the truth table for combination of the gates shown. Name the gates used

CBSE Class 12 CBSE Class 12 Physics
,
1

Write the truth table for the combination of the gates shown. Name the gates used.

2

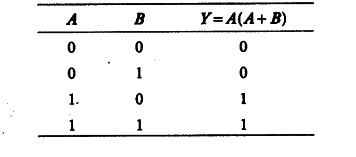

The logic gate R is OR gate and 5 is AND gate.The truth table is given by
